Vapor Heat Treatment (VHT) systems


Vapor Heat Treatment (VHT) System as the main product,

Our special heat control machine has been used around the world.


Please contact us by email, as there are not always English speaking staff in the office : info@sanshu.co.jp

What is Vapor Heat Treatment System?

 Vapor Heat Treatment is a Plant Quarantine treatment method. Our products have been used around the world anywhere phytosanitary is required for exporting of fresh fruits (ex. mango, papaya, dragonfruit) to Japan, South Korea, China, Australia, New Zealand, EU, and elsewhere.


 The Vapor Heat Treatment System (hereinafter “VHT System”) is a system for steadily killing eggs and larvae of fruit flies parasitizing inside the fruit with vapor and heat without injuring fresh fruits.


 The system operates on the following basic principle:

 The fruit is exposed to heat at specified temperature and humidity levels, increasing its internal temperature. As a result, parasites are killed while heat injury to the fruit is avoided.


 The system of equipment we provide is called the "differential pressure treatment system.” Treatment systems of this type use differential pressure to induce efficient circulation of vapor heat through all spaces in-between fruits so that each and every individual fruit is continuously, evenly and uniformly exposed to vapor heat atmosphere.


 Currently, almost all fresh fruits being imported to Japan on the condition of VHT are processed with a differential pressure type treatment system.




 Our VHT system has large market share in the world!

 Installation Result of Vapor Heat Treatment system

  • Cambodia
  • Malaysia
  • Taiwan

  • India
  • Pakistan
  • Thailand

  • Indonesia
  • Philippines
  • Vietnam



... And more

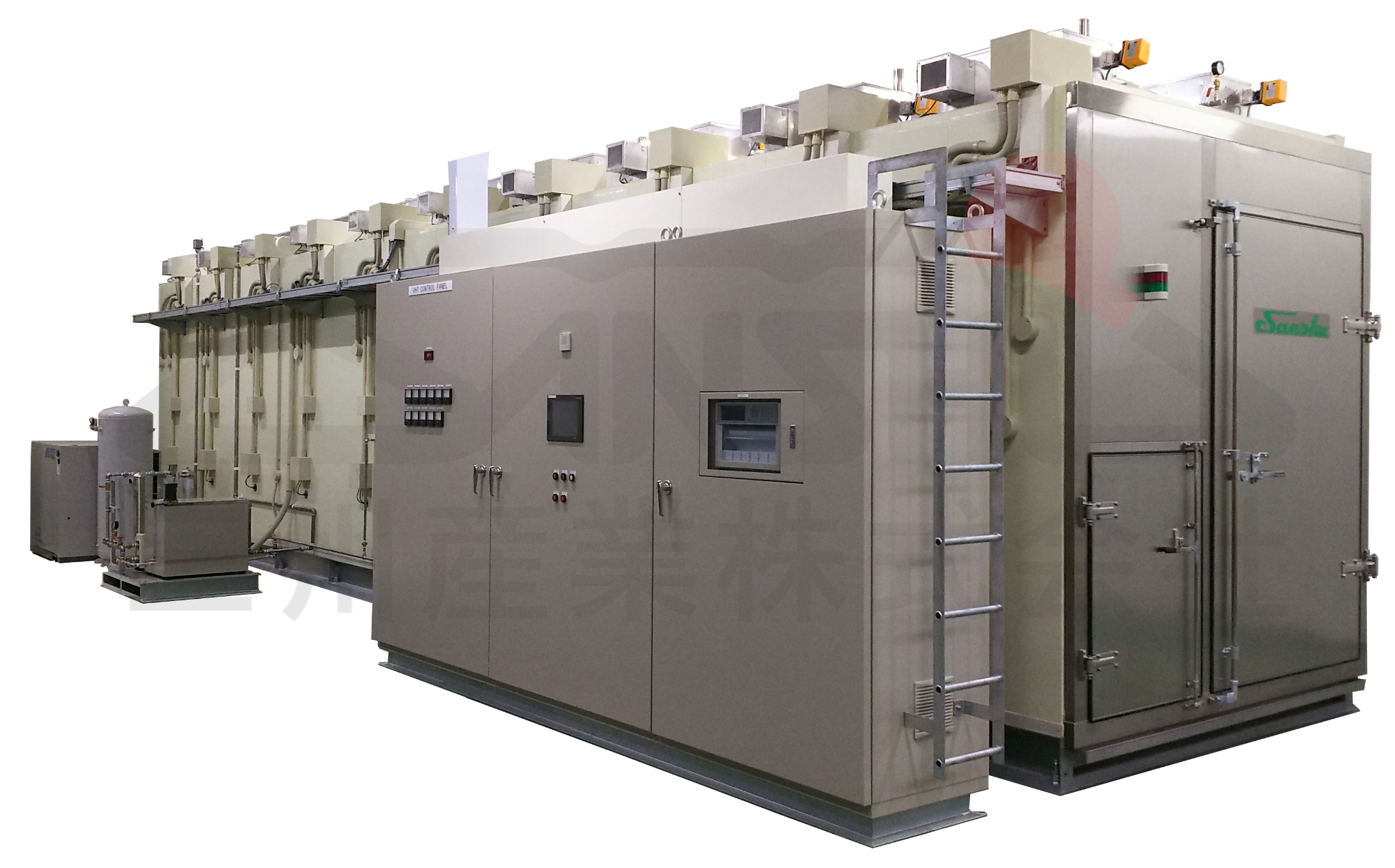

Commercial Vapor Heat Treatment Systems

For sterilization of fresh fruit in large quantities for export


 This machine is capable of sterilization of a large volume of fresh fruit per use.

 Vapor heat treatment is used to kill fruit fly eggs and larvae inside fruits that cause serious damage in export destination.

 Our VHT system is used in more than 10 countries worldwide.

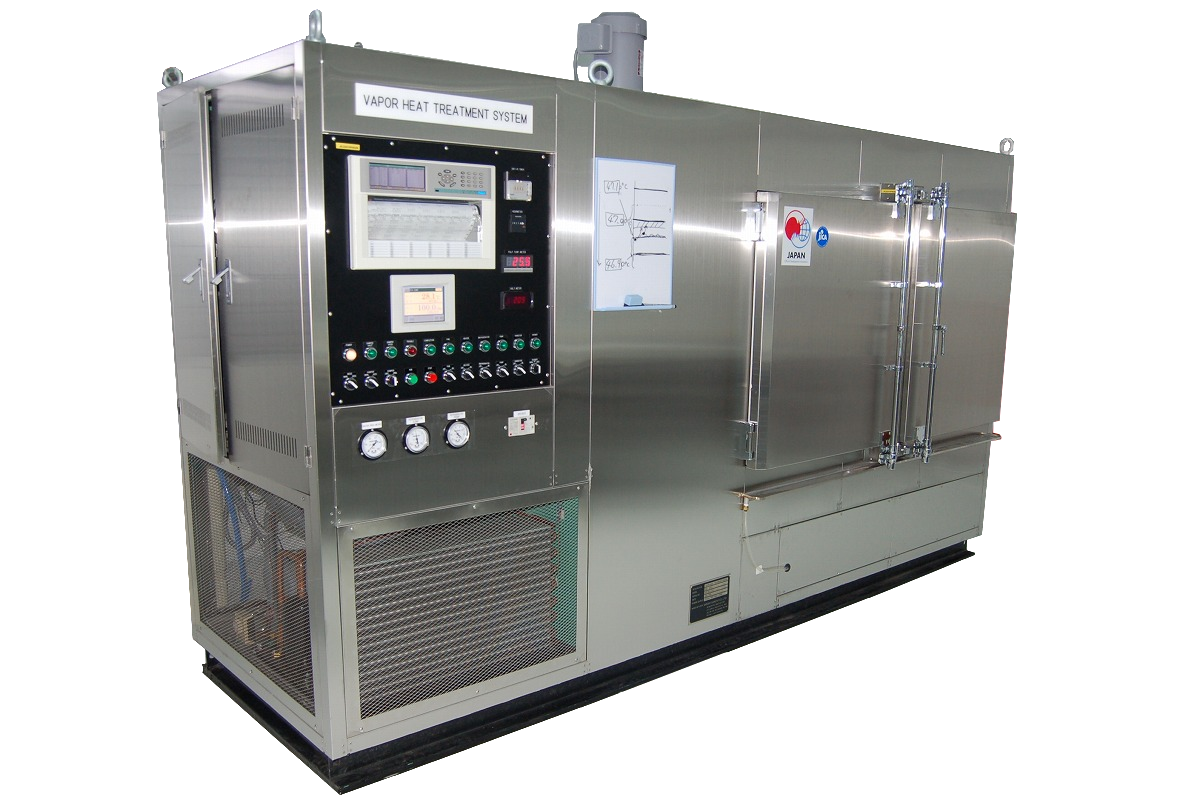

Vapor Heat Treatment System for Testing

For fruit damage, insecticide and disinfection test

 This machine has been installed into the laboratories such as the Plant Protection Station in Japan and overseas, in order to test for fruit damage, insecticide use and disinfection.

 It provide various temperature and humidity of environmental conditions with high precision, according to the purpose of the test by differential pressure mechanism.

【Patent】 (as of 2021 February)

 *Japan: Japanese Patent No.5816304

 *Indonesia: IDP000054162

 *Vietnam: Patent for invention No.26584

 Biochemical equipment


Installation of Biotron, temperature and humidity controlled chamber and clean room.


 Grading and Packing Machine


SANSHU make a proposal of grading machine according to purpose like sweetness, mass and colors and packing machine.



If you have any questions, please feel free to contact us at the below email address.

e-mail: info@sanshu.co.jp
